ST公司的STM32F40x 系列是高性能的數字信號控制器（DSC），采用ARM Cortex™-M4F 32位RISC內核，工作頻率高達168 MHz，具有210DMIPS性能，工作電壓1.7V-3.6V，RTC的超低功耗小于1uA，具有優異的接口，集成了1MB閃存，192KB SRAM，主要用在POS/投資管理，工業自動化和太陽能電池板，交通運輸，醫療設備，建筑物，測試儀表，消費類電子和通信等設備。本文介紹了STM32F40x 系列主要特性，方框圖，STM32F4DISCOVERY板主要特性，硬件框圖和電路圖，元件布局圖，以及采用STM32F4xx和STM32F4-DISCOVERY板的音頻播放和錄音模塊框圖。

The STM32F405xx and STM32F407xx family is based on the high-perance ARM^®Cortex™-M4F 32-bit RISC core operating at a frequency of up to 168 MHz. The Cortex-M4F core features a Floating point unit (FPU) single precision which supports all ARM single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.

The STM32F405xx and STM32F407xx family incorporates high-speed embedded memories (Flash memory up to 1 Mbyte, up to 192 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.

All devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers. a true number random generator (RNG). They also feature standard and advanced communication interfaces.

STM32F40x 系列主要特性：

Core: ARM 32-bit Cortex™-M4F CPU with FPU, Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution from Flash memory, frequency up to 168 MHz, memory protection unit, 210 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions

Memories

Up to 1 Mbyte of Flash memory

Up to 192+4 Kbytes of SRAM including 64-Kbyte of CCM (core coupled memory) data RAM

Flexible static memory controller supporting Compact Flash, SRAM, PSRAM, NOR and NAND memories

LCD parallel interface, 8080/6800 modes

Clock, reset and supply management

1.8 V to 3.6 V application supply and I/Os

POR, PDR, PVD and BOR

4-to-26 MHz crystal oscillator

Internal 16 MHz factory-trimmed RC (1% accuracy)

32 kHz oscillator for RTC with calibration

Internal 32 kHz RC with calibration

Sleep, Stop and Standby modes

V_BATsupply for RTC, 20×32 bit backup registers + optional 4 KB backup SRAM

3×12-bit, 2.4 MSPS A/D converters: up to 24 channels and 7.2 MSPS in triple interleaved mode

2×12-bit D/A converters

General-purpose DMA: 16-stream DMA controller with FIFOs and burst support

Up to 17 timers: up to twelve 16-bit and two 32-bit timers up to 168 MHz, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input

Debug mode

Serial wire debug (SWD) & JTAG interfaces

Cortex-M4F Embedded Trace Macrocell™

Up to 140 I/O ports with interrupt capability

Up to 136 fast I/Os up to 84 MHz

Up to 138 5 V-tolerant I/Os

Up to 15 communication interfaces

Up to 3 × I²C interfaces (SMBus/PMBus)

Up to 4 USARTs/2 UARTs (10.5 Mbit/s, ISO 7816 interface, LIN, IrDA, modem control)

Up to 3 SPIs (37.5 Mbits/s), 2 with muxed full-duplex I²S to achieve audio class accuracy via internal audio PLL or external clock

2 × CAN interfaces (2.0B Active)

SDIO interface

Advanced connectivity

USB 2.0 full-speed device/host/OTG controller with on-chip PHY

USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, on-chip full-speed PHY and ULPI

10/100 Ethernet MAC with dedicated DMA: supports IEEE 1588v2 hardware, MII/RMII

8- to 14-bit parallel camera interface up to 54 Mbytes/s

Analog random number generator

CRC calculation unit, 96-bit unique ID

RTC: subsecond accuracy, hardware calendar

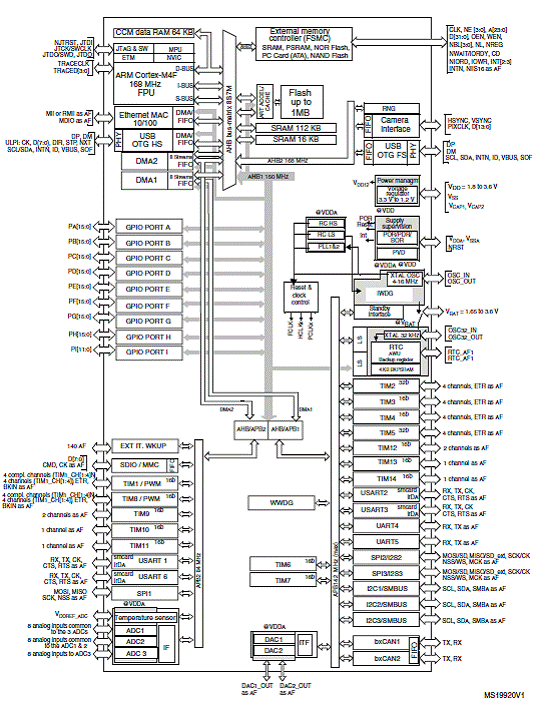

圖1。STM32F40x 系列方框圖
